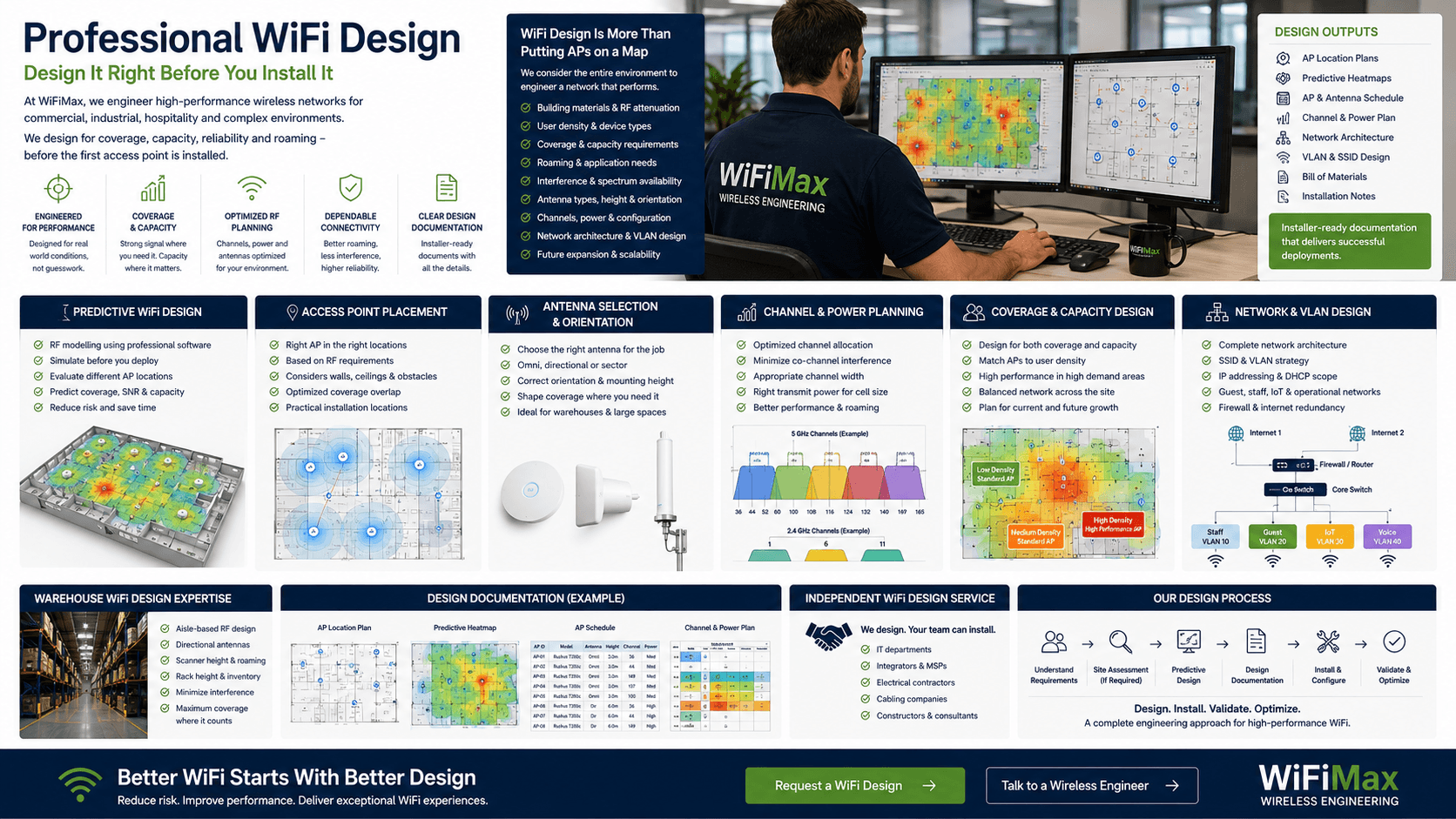

Professional WiFi Design
Better WiFi Starts With Better Design
Reliable WiFi doesn't begin with installing access points. It begins with understanding the building, users, devices, applications and RF environment before the network is deployed.
Poor access point placement, incorrect antenna selection, excessive transmit power and inadequate capacity planning can create performance problems that are difficult and expensive to correct after installation.
WiFiMax provides professional WiFi design and RF engineering services nationwide across the USA, helping businesses, IT teams, network integrators and contractors design reliable wireless networks before deployment begins.
Our wireless engineers use professional RF planning and design platforms including Ekahau and TamoGraph to model wireless coverage, evaluate access point locations and develop RF designs around the requirements of each environment.
WiFi Design Is More Than AP Placement
Placing access points evenly across a floor plan doesn't guarantee good WiFi.
Wireless signals don't follow architectural grids.
Walls, doors, shelving, machinery, glass, concrete, inventory and other building materials can dramatically change how RF signals propagate.
At the same time, different areas may have very different capacity requirements.
WiFiMax considers the complete environment when designing the network, including:
Building construction
RF attenuation
Coverage requirements
Number and type of client devices
User density
Application requirements
Roaming
Access point capabilities
Antenna characteristics
Mounting height
Channel availability
Interference
Network capacity
Outdoor coverage
Future expansion
The result is a wireless design based on engineering requirements rather than guesswork.
Predictive WiFi Design
Model the Wireless Network Before Installation
Predictive RF modelling allows us to simulate how WiFi signals are expected to propagate throughout a building before access points are installed.
Using building floor plans and professional wireless design software, WiFiMax creates a digital RF model of the environment.
Walls and other building materials are assigned appropriate attenuation characteristics, allowing us to evaluate different access point locations and configurations.
Predictive modelling can help determine:
Access point quantity
AP locations
Expected signal coverage
Secondary AP coverage
Signal-to-noise ratio
Coverage overlap
Capacity requirements
Potential interference
Appropriate antenna types
The design can then be refined before installation begins.
Coverage & Capacity Planning
Strong Signal Is Only Part of Good WiFi
WiFi design isn't simply about providing signal everywhere.
A network also needs enough capacity to support the users and devices operating within each area.
A conference room, classroom, hotel, warehouse or busy office may have very different requirements from an empty corridor.
WiFiMax considers both:
Coverage – Can devices receive an appropriate wireless signal?
Capacity – Can the network support the number of devices and applications expected in that area?
Both need to be considered when determining access point quantity and placement.
Access Point Placement
Where an access point is installed can be just as important as which access point is selected.
WiFiMax determines AP locations based on the RF requirements of the environment rather than simply choosing the easiest mounting locations.
We consider:
Required coverage area
Ceiling height
Building materials
User locations
Device density
AP mounting options
Antenna characteristics
Nearby access points
Coverage overlap
Cabling practicality
Environmental conditions
This helps create controlled wireless cells throughout the facility.
Antenna Selection & Orientation
Different Environments Need Different Antennas
Not every wireless environment should use the same antenna.
Omnidirectional antennas can work well in many conventional environments, while directional antennas may be more appropriate for warehouses, long corridors, outdoor areas and other specialized applications.
WiFiMax can specify:
Access point model
Antenna type
Antenna orientation
Mounting height
Mounting direction
Recommended transmit power
For directional deployments, antenna orientation becomes an important part of the RF design and installation documentation.
Reduce Interference Before It Becomes a Problem
Access points sharing the same or overlapping channels can compete for airtime and reduce wireless performance.
WiFiMax develops channel plans appropriate for the environment, considering:
Available spectrum
AP density
Channel reuse
Channel width
Co-channel interference
Adjacent-channel interference
2.4 GHz, 5 GHz and 6 GHz operation
Regulatory requirements
Device compatibility
The objective is to use available RF spectrum efficiently while minimizing unnecessary interference between neighbouring access points.
Transmit Power Planning
More power doesn't necessarily mean better WiFi.
Excessive transmit power can create oversized RF cells, increase interference and contribute to poor roaming behaviour.
WiFiMax specifies appropriate transmit power levels to help create controlled coverage areas with suitable overlap between neighbouring access points.
The goal isn't to make every AP transmit as far as possible.
It's to make the entire wireless system work together.
WiFi Roaming Design
Design for Devices That Move
In many environments, wireless devices are constantly moving.
Warehouse scanners, healthcare devices, laptops, tablets, VoIP handsets and other mobile clients may transition between multiple access points throughout the day.
WiFiMax designs RF coverage with appropriate cell overlap to support effective roaming for compatible devices.
This is particularly important for:
Warehouses
Healthcare facilities
Schools and campuses
Offices
Retail environments
Hospitality
Industrial facilities
Following installation, roaming performance can also be verified through onsite testing and post-deployment validation.
Warehouse WiFi Design
Specialist RF Design for Complex Industrial Environments
Warehouses require a different design approach from conventional offices.
High ceilings, long aisles, metal racking, machinery and changing inventory can significantly influence RF propagation.
WiFiMax considers:
Rack layout
Rack height
Aisle width
Inventory
Ceiling height
Scanner operating height
AP mounting height
Directional antennas
Antenna orientation
Coverage overlap
Roaming
Interference between aisles
Where appropriate, directional access points or external antennas can be used to shape coverage along specific warehouse aisles rather than transmitting RF energy indiscriminately across the facility.
Indoor & Outdoor WiFi Design
Wireless networks frequently extend beyond conventional indoor spaces.
WiFiMax can design connectivity for:
Offices
Warehouses
Hotels
Healthcare facilities
Schools and campuses
Retail facilities
Courtyards
Car parks
Loading areas
Outdoor workspaces
Separate buildings
Large properties
Outdoor designs may incorporate weather-resistant access points, directional antennas and long-range wireless infrastructure.
Network & VLAN Design
Wireless design doesn't stop at RF.
WiFiMax can also develop the network architecture required to support the wireless deployment.
Depending on the project, this may include:
SSID architecture
VLAN design
IP addressing
DHCP requirements
Network segmentation
Guest networks
Firewall requirements
Switch requirements
PoE requirements
Gateway architecture
Internet redundancy
This ensures the wireless and wired components are designed as one coordinated network.
WiFi Design Documentation
Give Installers the Information They Actually Need
A professional wireless design should provide more than a heatmap.
WiFiMax can produce detailed implementation documentation showing how the wireless network should be installed and configured.
Depending on project scope, documentation may include:
AP location plans
Predictive RF heatmaps
Access point schedule
AP model
Antenna model
Antenna orientation
Mounting height
Recommended channel
Channel width
Transmit power
Cabling requirements
Network architecture
VLAN information
Installation notes
This provides installers and IT teams with a clear technical reference during deployment.
